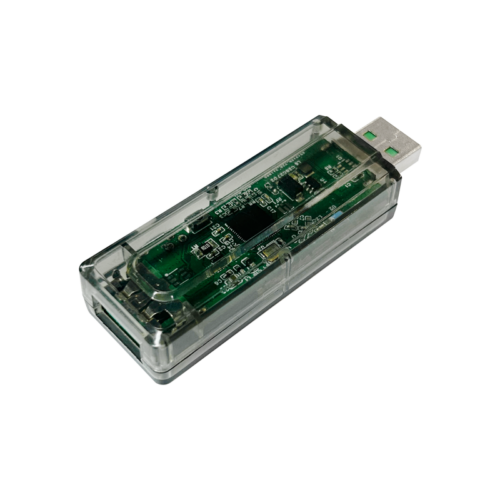

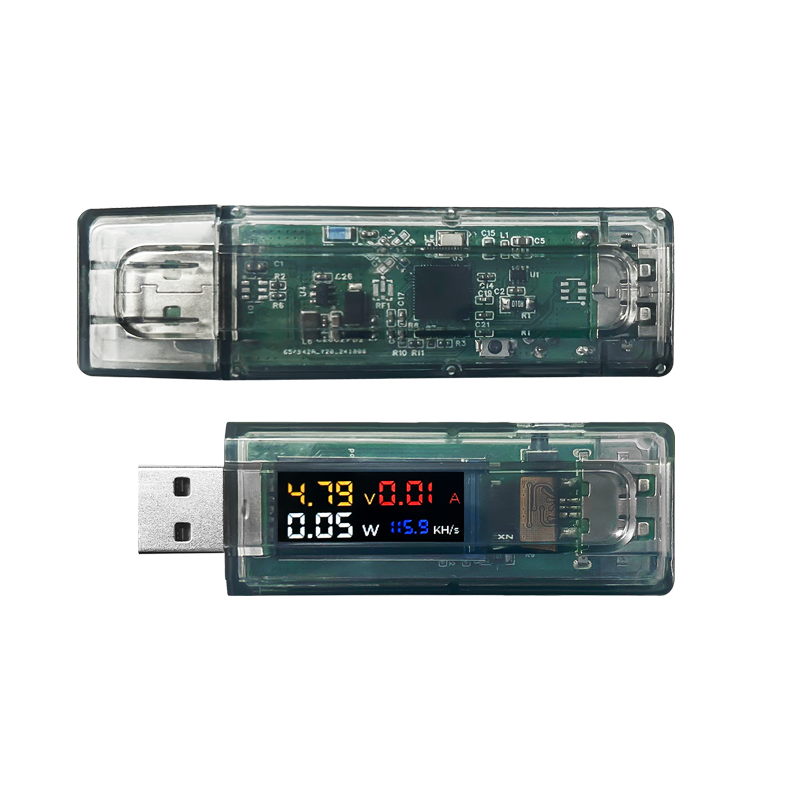

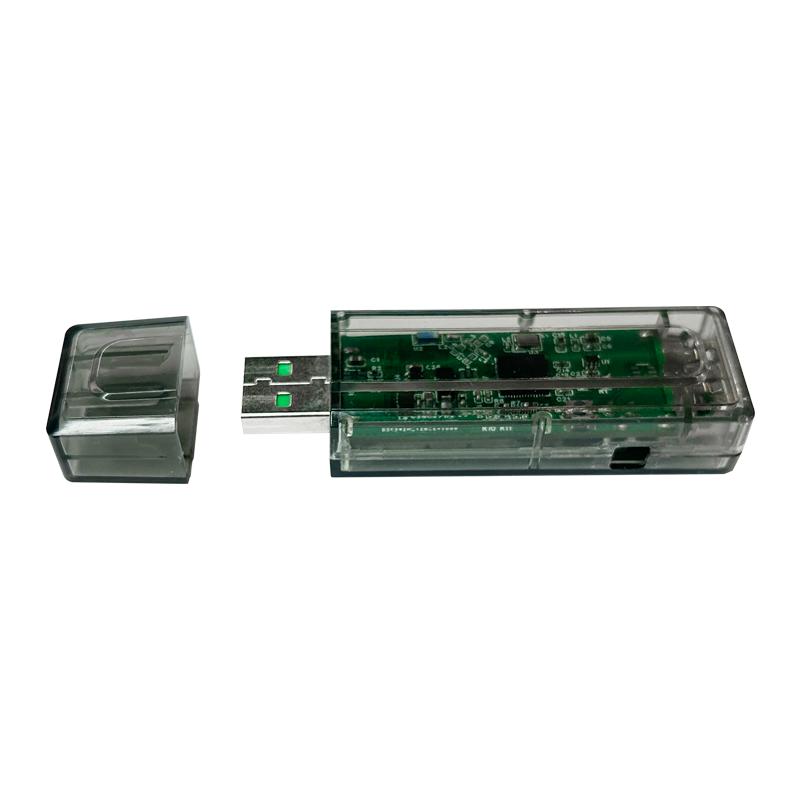

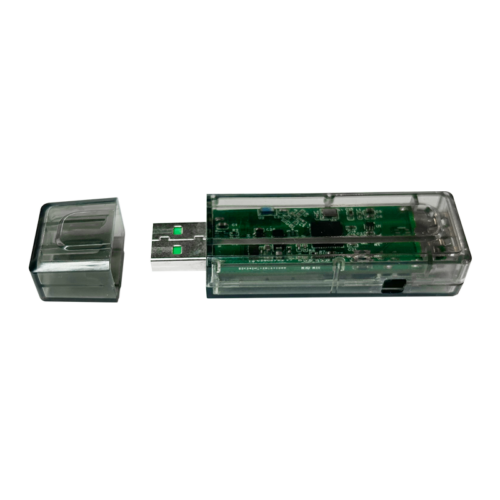

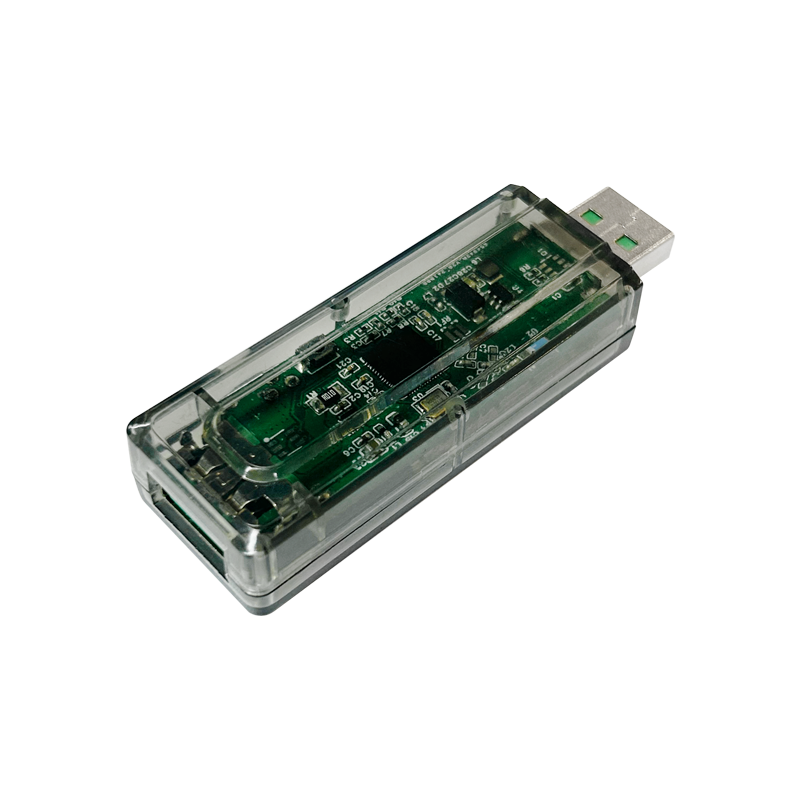

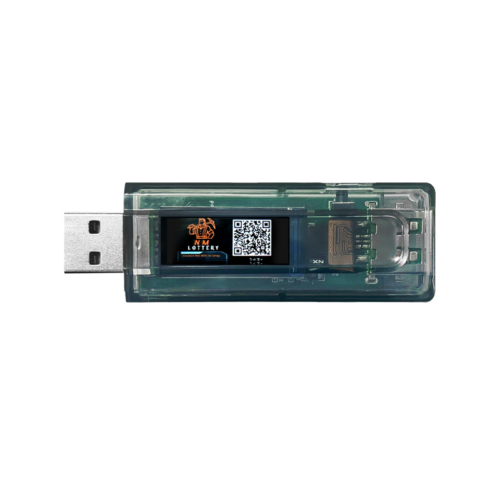

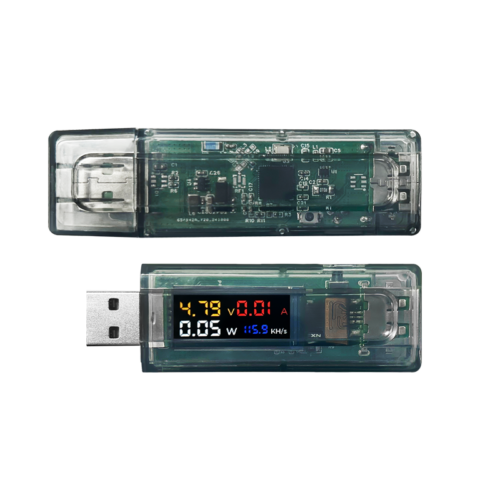

NM USB Chian — ESP32 BTC SOLO Lottery Miner with Ammeter

The NM-usb-chain is usb-A interface miner, multiple devices can form a BTC Lottery device chain.

Original price was: $50.00.Current price is: $29.90.

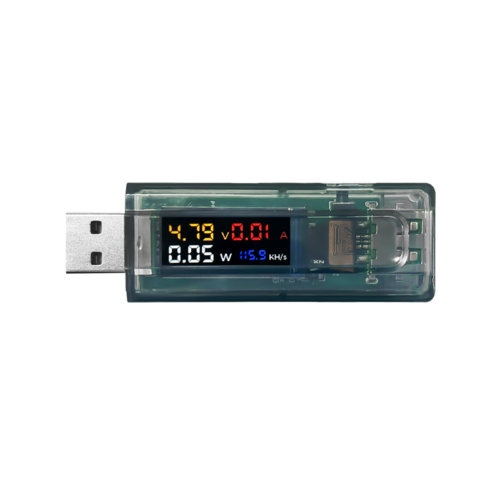

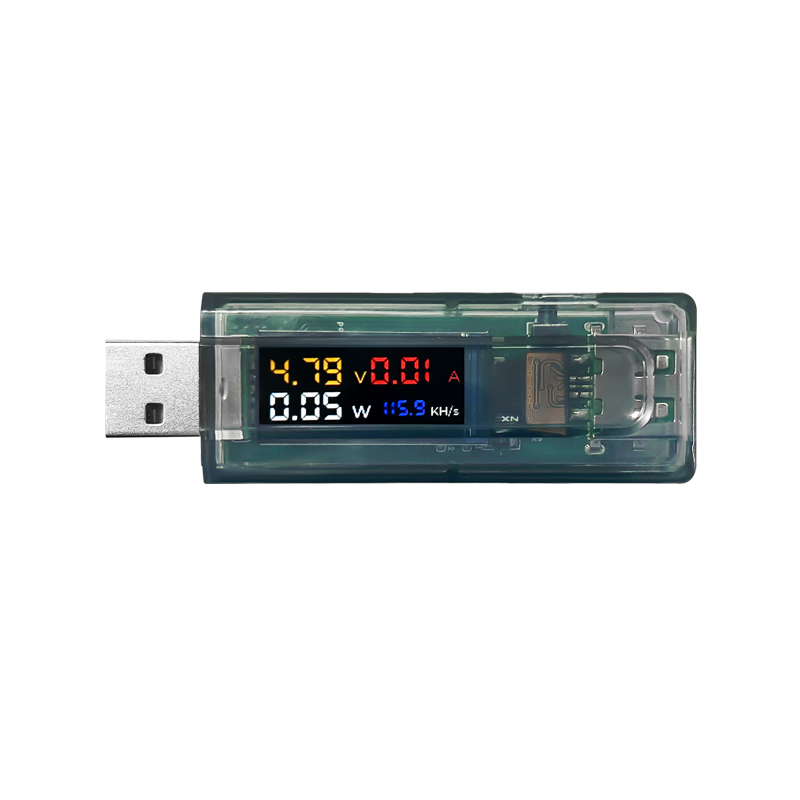

0.96 Inch Display

160*80;Full-color

Master Chip

ESP32-S3FN8, Xtensa32 dual core processor,240MHz

Easy Setup

phone or the NMMiner official flash tool

HashRate

110~120kH/s

Wi-Fi

802.11 b/g/n, up to 150Mbps

Power supply range

5~20V

Summary

  • NM-usb-chain is a NMMiner Offical development board, with Wi-Fi, Bluetooth.
  • The NM-usb-chain devices can be chained one-by-one.

  • ESP32-S3FN8, support Wi-Fi and BLE.

  • The NM-usb-chain also can working with the ESP32-S3 sample programs and development tools from Arduino and Platform.io, users can operate via Bluetooth, Wi-Fi.



Main Features



  • Specially optimized algorithm firmware enhances the arithmetic power to 117KH/s, increasing the probability of winning the lottery by 60%.

  • By double-clicking the USER key, allows you to switch to a desktop clock mode with the BTC Lottery running in the background.

  • Lower power consumption.

  • The NM-usb-chain can form a chain structure one by one, and only requires one power supply, making the overall design more concise.

  • No External computer is needed.

  • The system supports SSL secure connection if the pool supports it.

Specifications

TitleInfo
OriginMainland China
Integrated FeatureWiFi 802.11b/g/n, BLE
Operating modeBTC lottery/USB power meter tester
Master ChipESP32-S3FN8, Xtensa32 dual core processor
Power monitoring range5~20V/0~6A
HashRate110~120kH/s
Wi-Fi802.11 b/g/n, up to 150Mbps
Power supply range5~20V
Display0.96 inch TFT-LCD；160*80;Full-color
Charge protocolsQC2.0 QC3.0；FCP/SCP;APPLE2.4A/2.1A/1A/0.5A;DCP;SAMSUNG ADC
Memory384KB ROM; 512KB SRAM; 8MB SPI Flash
Dimensions772313.5mm
Device managementNMController
Operating temperature-20 ~ 70 ℃

What Cryptocurrency? How is the Income? And Difficulty?

draws every 10 minutes, 144 times every day, 52560 every year.

  • The lottery value is ~3.125 BTC, approximately equal to $220,000.

  • Degree of difficulty: ✬✬✬✬✬✬✬✬✬✬

The screenshot is the recent data of CK Pool. The data shows that there is a lucky winner about every month.

Device Configuration and Firmware Update

Dedicated NM Web Flasher, which can be used for firmware download, firmware update, device activation, and basic information configuration

NMController Cluster Management Tools

  • NMController_client, source code, we put the *_x64.msi and *_x86.msi in tool folder already, just install, only for Windows
  • NMController_web, source code, it’s a Python implement, for Windows and Mac.

Local Management System

Built-in Axe OS allows users to view system status and set device parameters in the dashboard
