Summary

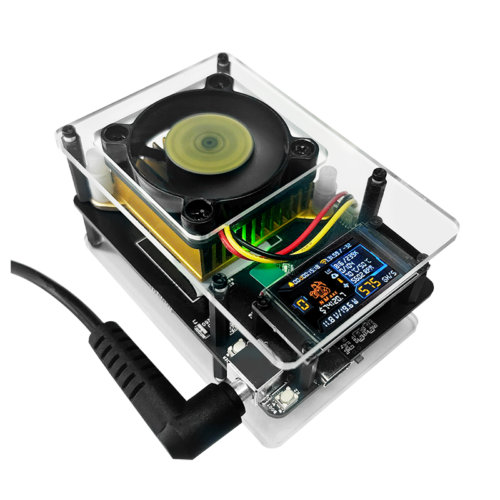

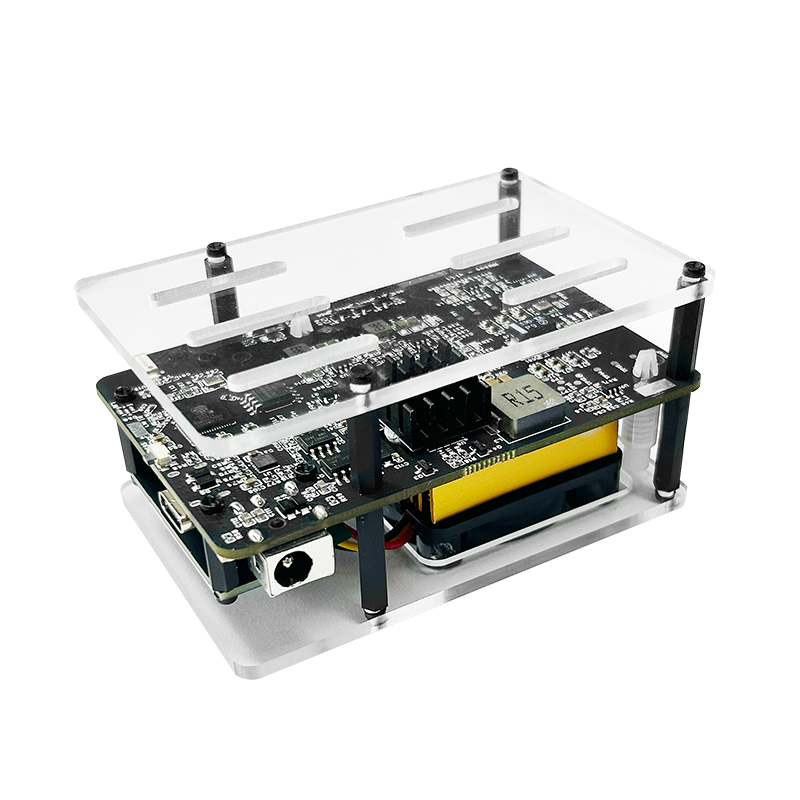

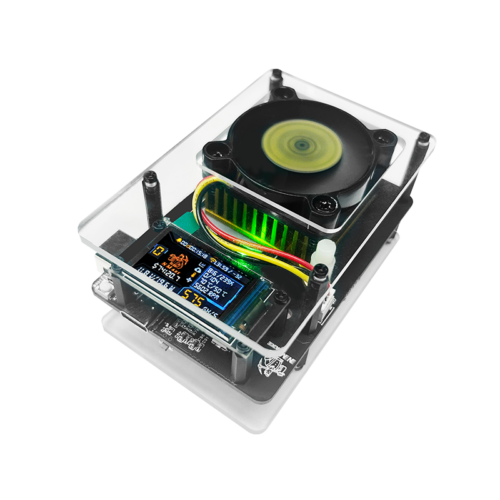

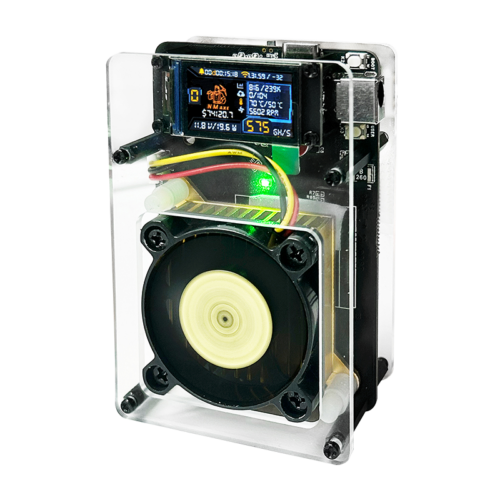

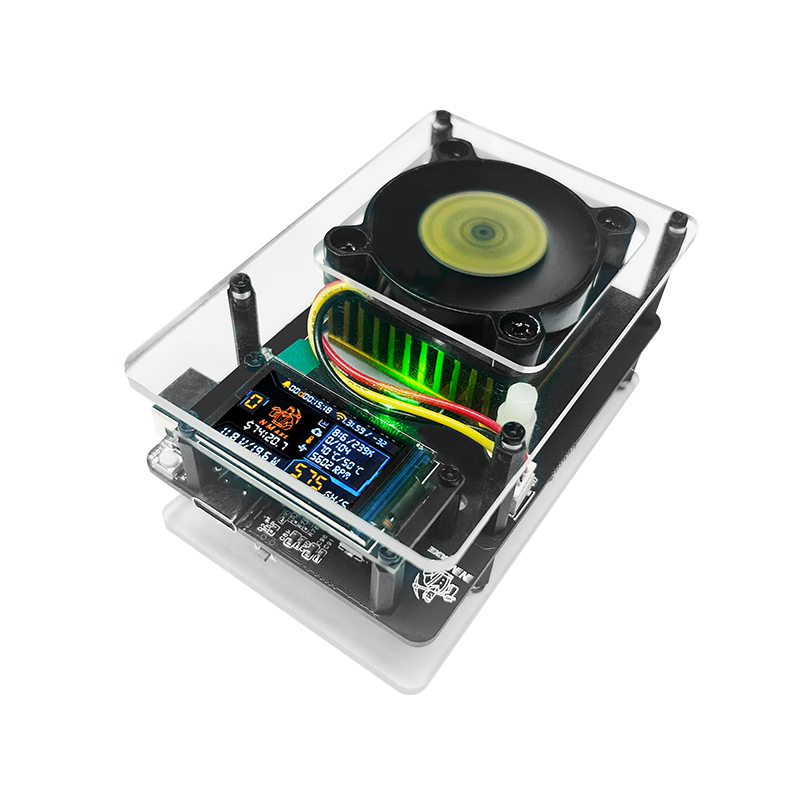

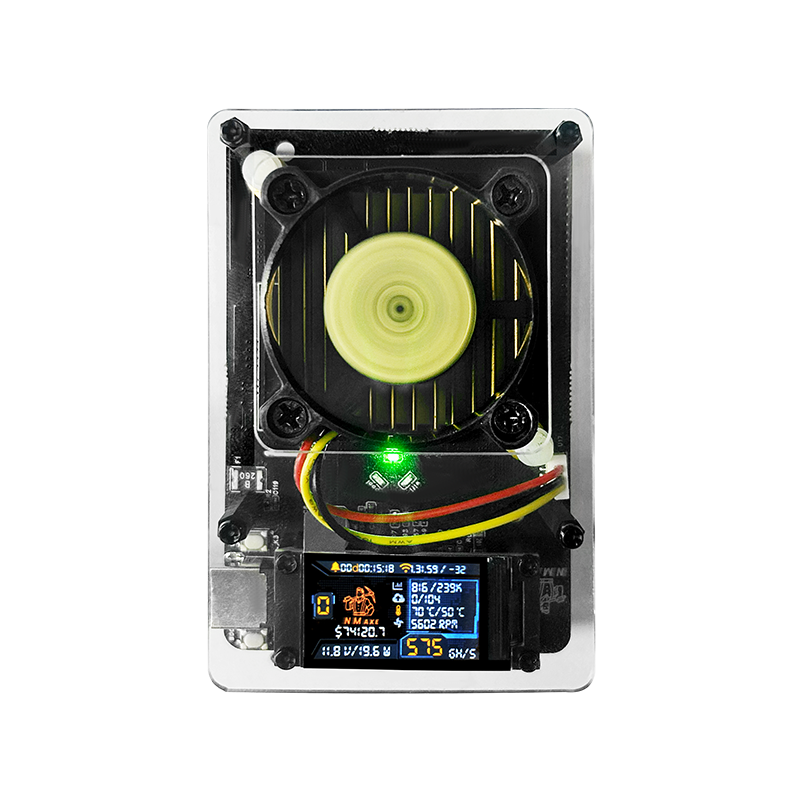

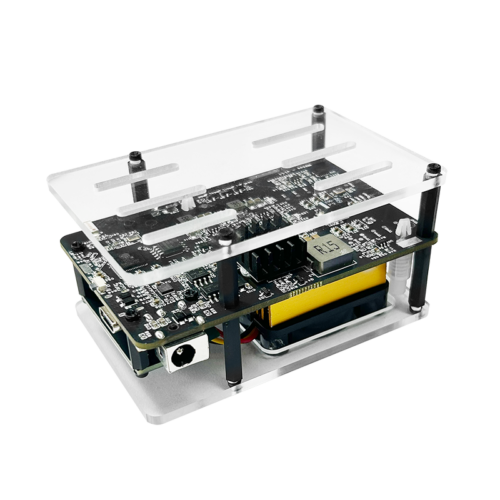

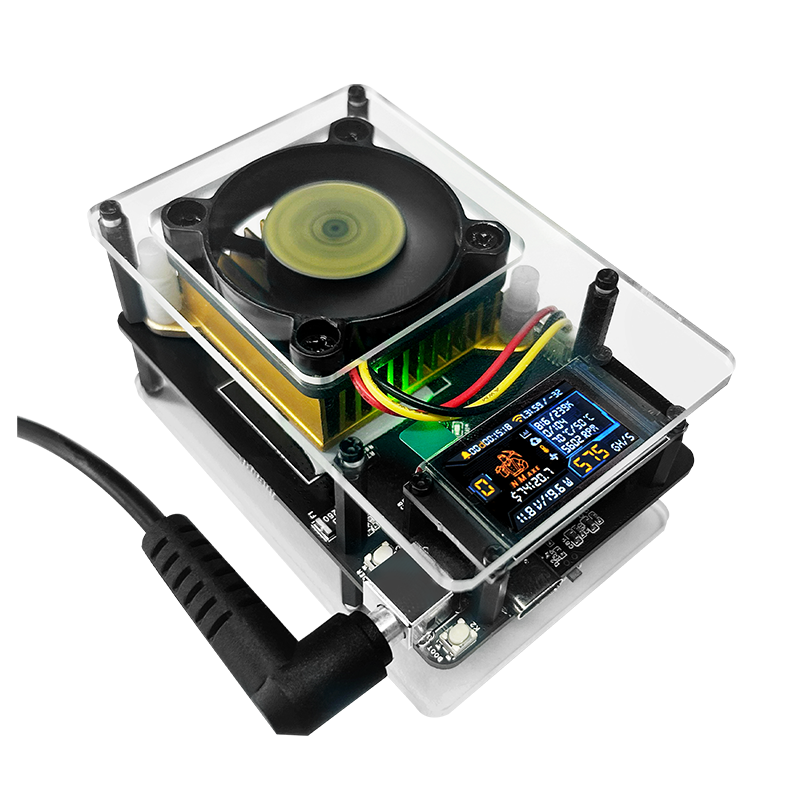

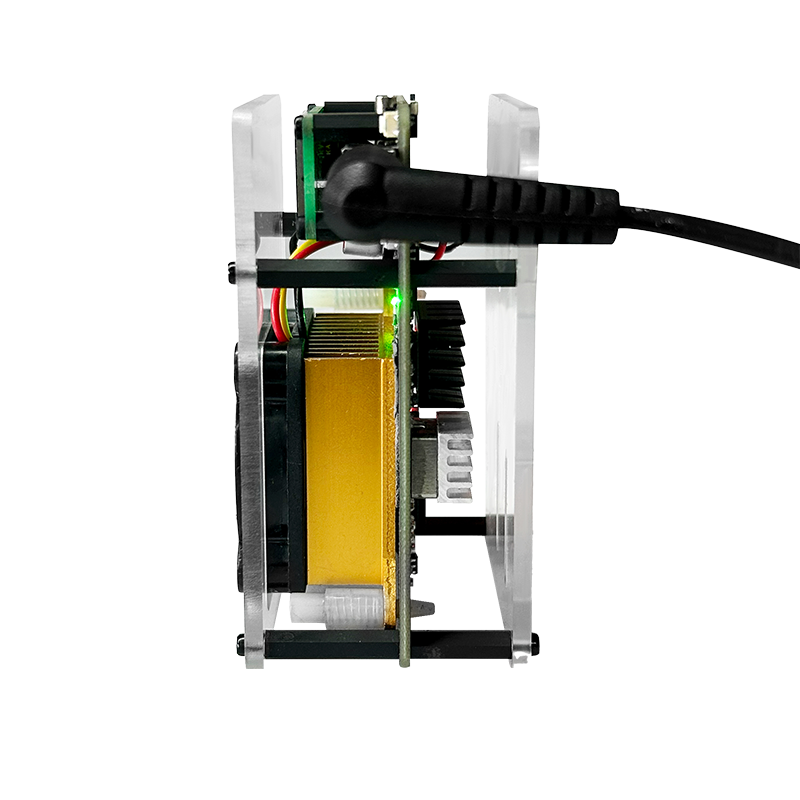

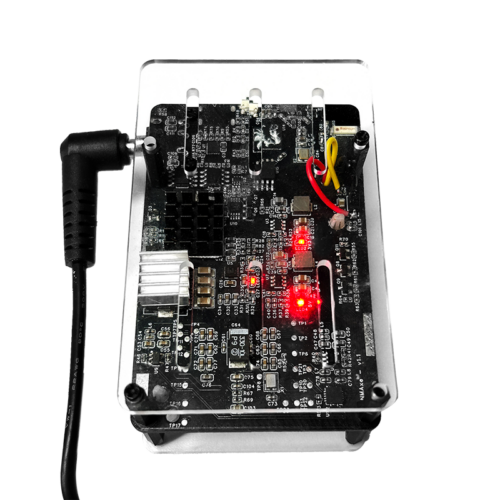

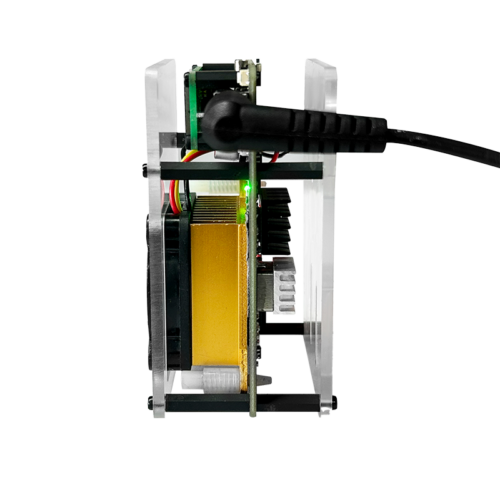

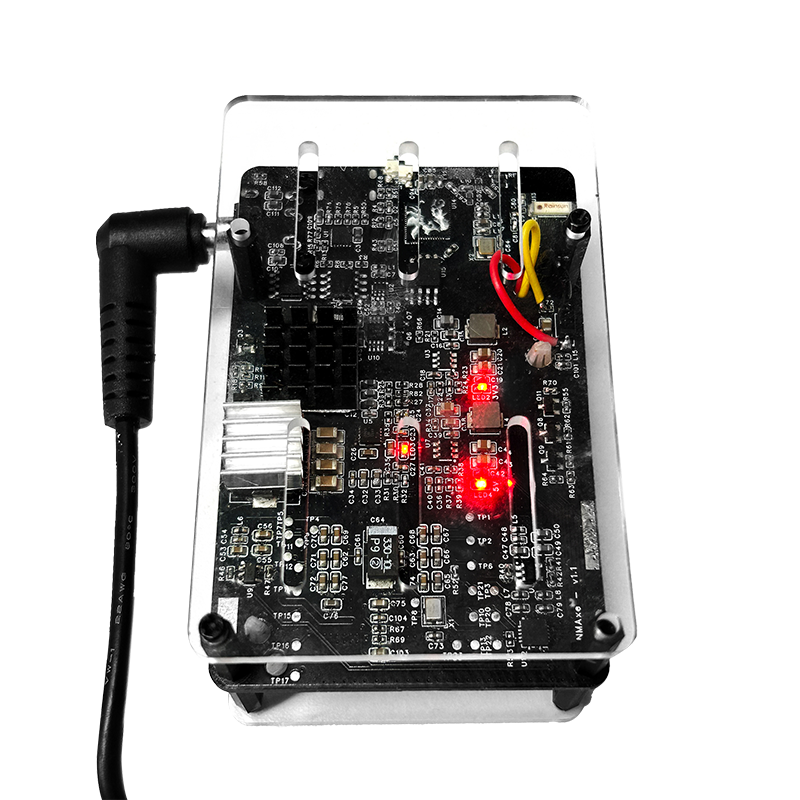

NMAxe is an NMMiner Offical development board, with BM1366 ASIC, Wi-Fi, and Bluetooth solo lottery Miner. Perfect for solo miners aiming to strike a Bitcoin block, the NMAxe is your golden ticket to potentially earning the 3.125 Bitcoin block reward. This high-efficiency, rewarding experience makes it the ultimate lottery miner on the market.
Goals
Standalone: You can mine directly to the pools over WiFi. No External computer is needed.
Embedded: low cost, low maintenance, high availability, high reliability, low power( less than 15W).
ASIC: based on the very, very efficient BM1366 from Bitmain.
BM1366
The BM1366 is an undocumented SHA256d mining ASIC from Bitmain.
It’s used in the Antminer S19XP and the S19k Pro.
Bitmain claims the BM1366 has 0.021J/GH efficiency.
The software ESP-Miner-NMAxe is fully open-source.
It’s from the open-source project:
| Info | |
|---|---|
| Origin | Mainland China |
| Integrated Feature | WiFi 802.11b/g/n, BLE |
| Device management | Web service Axe OS/NMController |
| Master Chip | ESP32-S3FN8, Xtensa32 dual core processor |
| ASIC | BM1366 |
| HashRate | 500 ~ 550 GH/s |
| Wi-Fi | 802.11 b/g/n, up to 150Mbps |
| Power supply range | 9/2.5A~12V /2A |

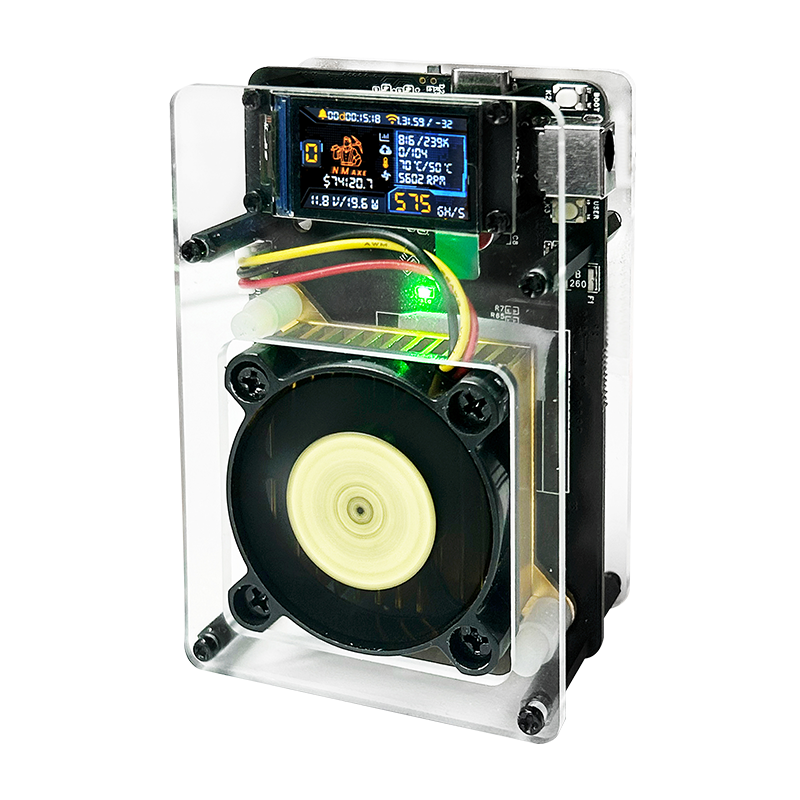

| Display | 1.14 inch TFT-LCD display 135*240, 262k colors |
| Supply mode | DC\PD3.0 DC adapter and PD charger are supported |
| Memory | 384KB ROM; 512KB SRAM; 16MB SPI Flash |
| Power Interface | Type-C USB\DC2.0 |
| Power Consumption | 15~20W |
| Operating temperature |
What Solo Pool Does NM Axe support?
What Cryptocurrency? How is the Income? And Difficulty?
Bitcoin Lottery
The lottery value is ~3.125 BTC, approximately equal to $220,000.
The screenshot is the recent data of CK Pool. The data shows that there is a lucky winner about every month.
BCH Lottery
The lottery value about $1,000.
XEC Lottery
Draws every 10 minutes, 144 times every day, 52560 every year.
DGB Lottery
Draws every 10 minutes, 144 times every day, 52560 every year.
Where to get the NMMiner firmware?
To get the firmware,
- you can get it from NMTech’s github.
- you can flash the NMMiner firmware to your device from the NMMiner web-flash-tool.
If you accidentally lose your license or flashed other applications, the web flash tool will help you findand recover it. So don’t worry to erase the board for other applications, you can reflash the NMMiner, and there’s noneed any activation. If you don’t have a license yet, you can directly jump to the activation page from the web flash toolThe nm-bot-chain, nm-usb-chain, Heltec Vision Master T190 (NMMiner) are NMMiner Inside devices, no longer need to activate.
How BTC Lottery works?
BTC lottery is just the Solo mining, Solo mining refers to the process of an individual miner attemptingto solve a block on their own.
This means that they are solely responsible for finding a solution to the complex mathematical problemthat is required to add a block to the blockchain, lf successful, the miner is awarded the entire blockreward, for the BTc is 3.125 BTc block reward, value about $300.000.
How to config the NMMiner easily?
With the NMMiner web-flash-tool, https://flash.nmminer.com, you can config the NMMiner moreeasily.
Update the firmware
Step 1: When you first get the device, you should choose the device type you have, choose it andConnect and Program.
Step 2: When the NMMiner works well, you can see the WiFi and BTC address configure input boxInput your WiFi SSlD and password, BTC address, config the device. lf everything is ok, you can see theHashrate report from the Console.
Console Only
If you don’t need to update the firmware, just check the Console only, the NMMiner will run, then youcan config it as【Update the firmware】 Step 2.
NMController Cluster Management Tools
- NMController_client, source code, we put the *_x64.msi and *_x86.msi in tool folder already, just install, only for Windows
- NMController_web, source code, it’s a Python implement, for Windows and Mac.
Local Management System
Built-in Axe OS allows users to view system status and set device parameters in the dashboard
